7-in-1 Games Table
Instructions and safety advice for the assembly and use of the 7-in-1 Games Table.
Product Information
The 7-in-1 Games Table is a versatile and space-saving solution that combines fun and functionality in one sleek design. Offering pool, table tennis, air hockey, chess, backgammon, shuffleboard and a dining table option, it’s perfect for both game nights and everyday use. Supplied with all necessary accessories, it’s available in a choice of grey or oak finishes and can be purchased with or without matching benches to suit your space and style.
SKU
216250,216252,216254,216257,216259,216261 /
Colors
Oak, Grey /
Dimensions
L x W x H = 206cm x 112cm x 82cm /
Materials
MDF, PVC Lamination, Metal Hardware /
Weight
148kg
7-in-1 Games Table
EN
Safety Information
Safety Advice
**Ensure you have read and fully understood the instruction manual and safety advice before using this product**
* Always assemble the games table according to the manufacturer’s instructions, using the correct tools and hardware provided.
* Ensure the table is placed on a flat, level surface to maintain stability during all games and prevent tipping or imbalance.
* Use two adults to flip or change tabletops to avoid injury and maintain control of the movement.
* Take care around any built-in storage fittings, such as pool cue hooks, during use to avoid catching clothing or causing injury.
* Keep all hands, fingers, and body parts clear of hinges, rotating components, and pinch points when flipping or converting the table.
* Always supervise children during use, especially when flipping the tabletop or playing with accessories.
* Store all accessories such as pucks, balls, cues, paddles, chalk, and small game pieces in the designated compartments when not in use to prevent tripping hazards.
* Keep the play area clear of clutter and ensure accessories are not left on the floor to avoid slips, trips, or falls.
* Only use the soft-tip paddles and accessories supplied to minimise the risk of injury or damage to the table.
* Maintain a safe distance from the table during fast-paced games like air hockey and table tennis, particularly for bystanders.
* Never allow children under 3 years of age to handle small accessories such as chess or backgammon pieces due to choking hazards.
* Do not use the air hockey fan unit if the cable, plug, or housing shows signs of damage or wear.
* Keep all electrical components away from water or damp environments to prevent risk of electric shock or short-circuiting.
* Always unplug the air hockey unit after use and before cleaning, moving, or storing the table.
* Do not sit, stand, or apply excessive force on the table surface or accessories, including cues and paddles.
* Use the table and benches (if purchased) only for their intended purpose—do not climb, jump or lean heavily on any part of the structure.
* Ensure there is adequate lighting in the area where the games table is used to reduce risk of accidents or misuse.
Monster Group UK Limited’s liability will be limited to the commercial value of the product only. Please visit https\://monstershop.co.uk/policies/terms-of-service to see the full terms and conditions.
Monster Group UK Limited’s liability will be limited to the commercial value of the product only. Please visit https\://monstershop.co.uk/policies/terms-of-service to see the full terms and conditions.
GPSR Information
UK GPSR Information
Manufacturer
Monster Group UK Limited
Monster House 19-23 Alan Farnaby Way
Industrial Estate Sheriff Hutton
York YO60 6PG
England
+441347878880
Monster House 19-23 Alan Farnaby Way
Industrial Estate Sheriff Hutton
York YO60 6PG
England
+441347878880
Representative
Rana Harvey
Monster House 19-23 Alan Farnaby Way
Industrial Estate Sheriff Hutton
York YO60 6PG
England
+441347878880
Monster House 19-23 Alan Farnaby Way
Industrial Estate Sheriff Hutton
York YO60 6PG
England
+441347878880
EU GPSR Information
Manufacturer
Monster Group BV
Van Heemskerckweg 28A & B
-
Venlo 5928LL
Netherlands
+441347878880
Van Heemskerckweg 28A & B
-
Venlo 5928LL
Netherlands
+441347878880
Representative
Rana Harvey
Van Heemskerckweg 28A & B
-
Venlo 5928LL
Netherlands
+441347878880
Van Heemskerckweg 28A & B
-
Venlo 5928LL
Netherlands
+441347878880
Included Parts
Rotating Pool Table / Air Hockey Table
Table surface / Table Tennis surface
Leg

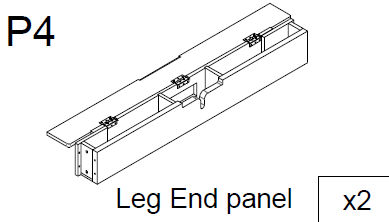

Leg End Panel
Leg Side Panel
Latches
Leg Leveller
Support Brace

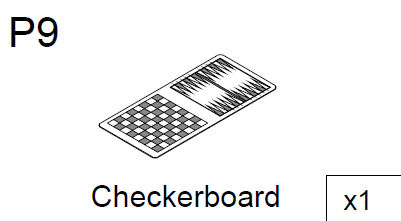

Chess, Backgammon & Shuffleboard Board
1-3/4" Bolt
Plastic Cover
1-3/4" Screw
Plastic Barrel Nut
Nut
Washer
Axle Sleeve
Screw
Wood Plug

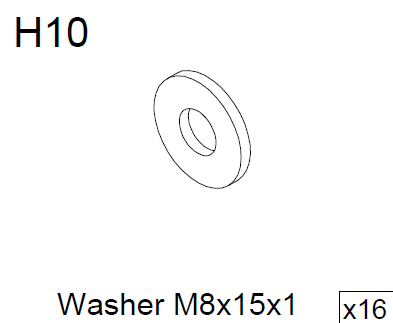

M8x15x1 Washer
Bracket
Allen Key Tool

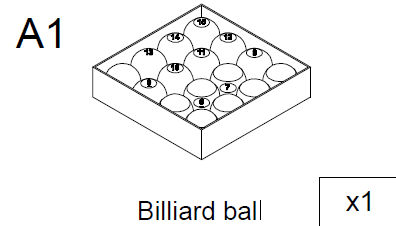

Billiard Ball Set
Triangle Rack
Chalk
Cue Stick
Plastic Brush
Hockey Striker
Hockey Puck
Table Tennis Paddle
Table Tennis Ball
Table Tennis Net
Backgammon Set
Chess Set
Shuffle Board
Walkthrough

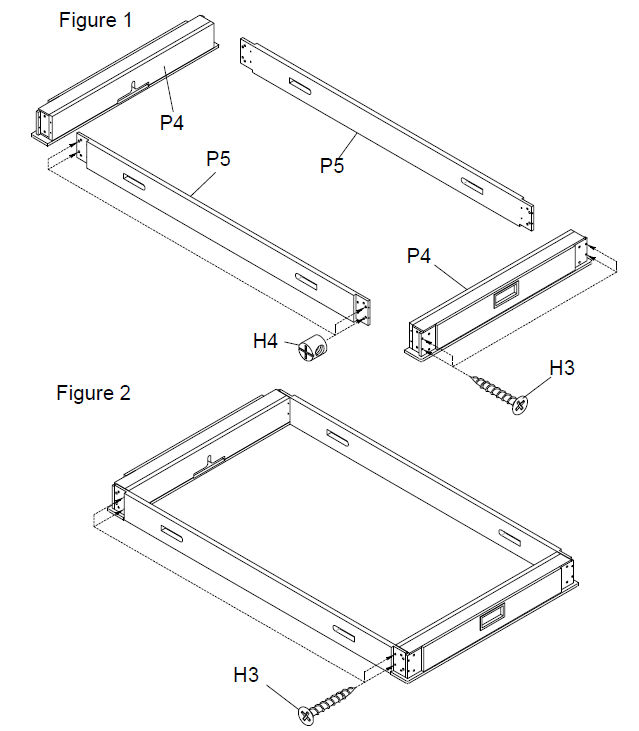

1. Assembling the Leg Panels
- Align the Leg End Panels (P4) and Leg Side Panels (P5) to form the table base.
- Use the plastic barrel nuts (H4) and 1-3/4" screws (H3) to connect the panels together as shown in Figure 1-2.

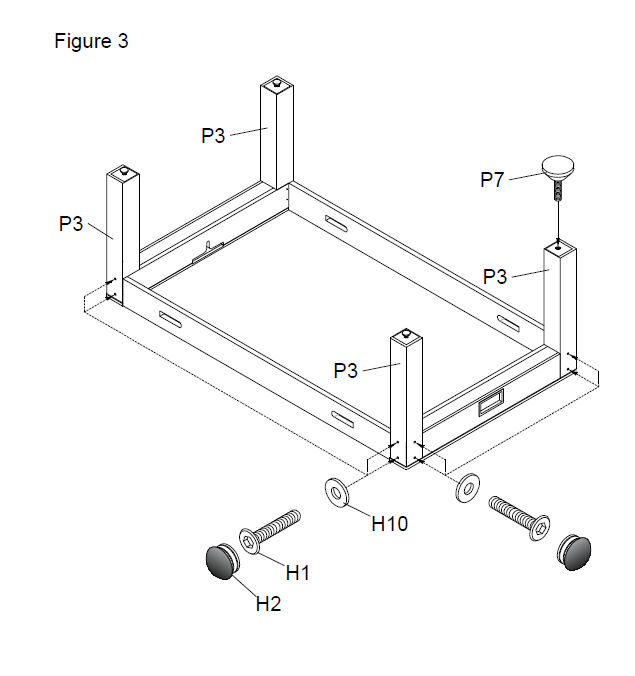

2. Installing the Legs
- Attach the legs (P3) between the leg panels.
- Secure each in place using M8x15x1 washer (H10), 1-3/4" bolt (H1) and plastic cover (H2) in the pre-drilled holes, as shown in Figure 3.
- Check that all legs are straight and tightly secured before proceeding.

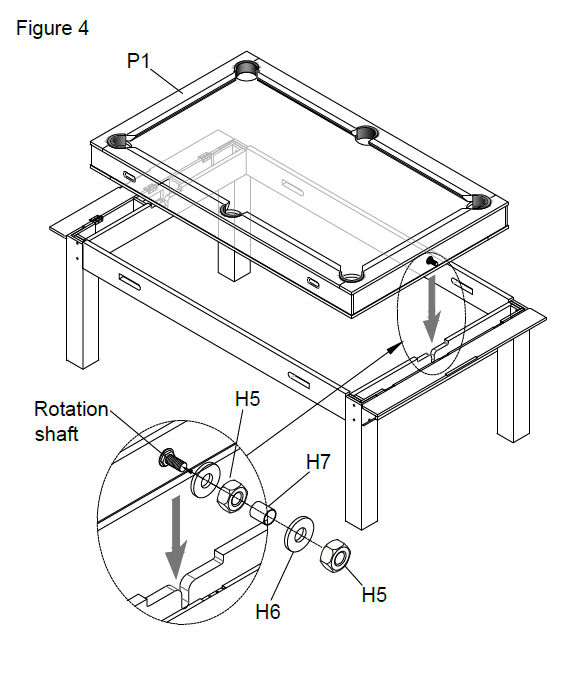

3. Attach Table top
- Rotate the frame to be stood on its legs.
- With assistance, lift the table top (P1) on top of it, ensuring that the rotation shaft slots into the hole on the leg end panel (see figure 4).
- Attach a washer (H6), followed by a nut (H5), an axle sleeve (H7), then another washer (H6) and nut (H5) to the rotation shafts on either end.

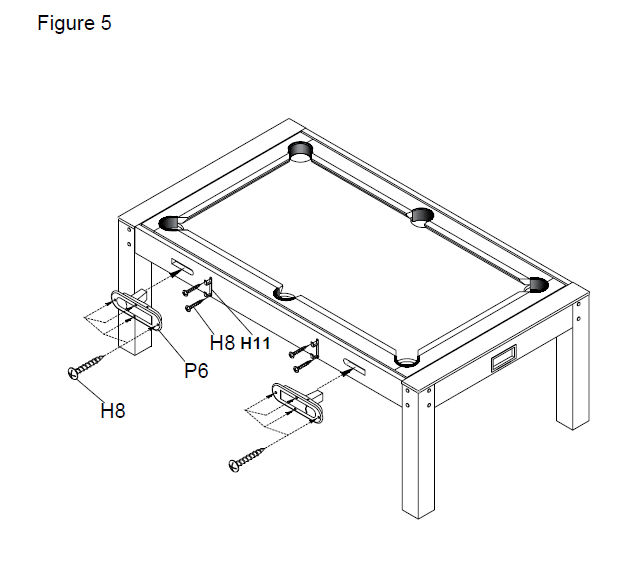

4. Fit the Latches
- Attach the latches (P6) to the slots on the side panels (P5) using screws (H8).
- These latches secure the interchangeable tops during play.
- Attach the brackets (H11), using screws (H8), these brackets can be used to store cues.

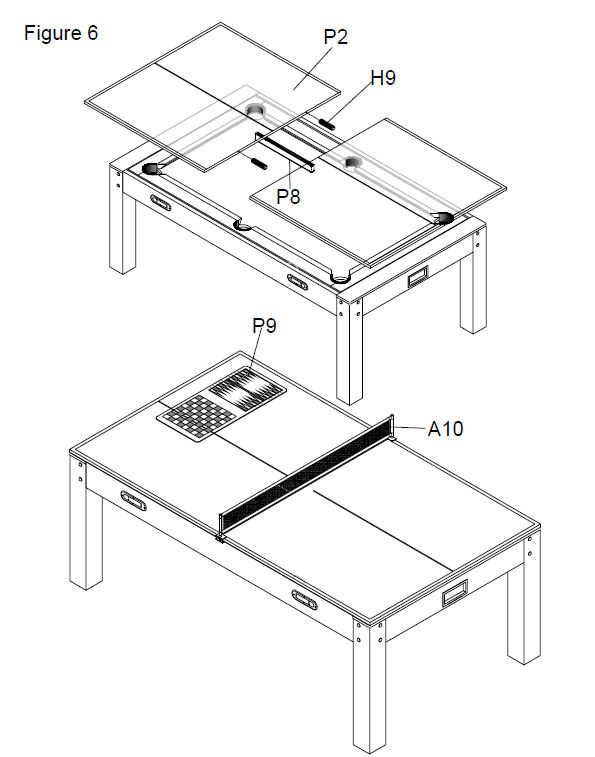

5. Attaching Table Tops and Games Accessories
- Place the support brace (P8) onto the table before resting the double-sided Table Surface (P2) on top of the pool table frame. Choose between either the Dining Table or the Table Tennis Surface.
- Insert wood plugs (H9) into the two holes on the edge on the table surface parts (P2) and join the two parts together (see figure 6).
- Ensure it is properly centred before joining.
- To switch between the table tennis and dining table set-up, simply flip the table surface (P2).
- The table is now assembled. You can attach the included game accessories as needed, depending on which game you'd like to play!

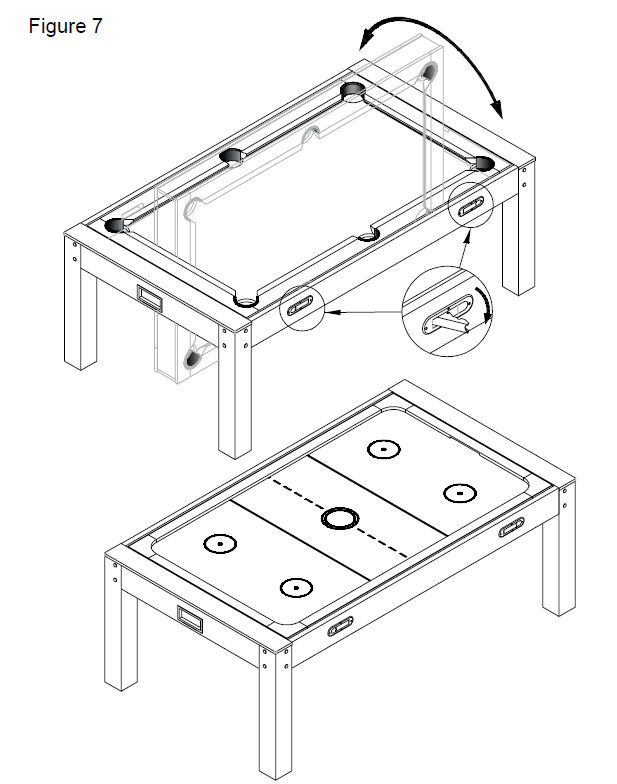

6. Table Rotation Instructions
- To switch between the air hockey table and the pool table: (See figure 7)
- Firstly, open the four latches (P6) on the side panels (P5).
- Fully rotate the table panel until level again.
- Close the latches to secure the table in place
*Ensure all latches are firmly shut and table is secured before playing.*
7.
- Clean the table and accessories using a dry or slightly damp cloth only. Do not use abrasive or chemical cleaners.
- Inspect the table and all accessories regularly for signs of damage or wear and replace any damaged components immediately.
